Aggregate Testing in UK Construction: Methods, Standards, and Why It Matters

Construction projects rely on materials that perform exactly as expected. When aggregates or soils don’t meet specification, problems often surface later – typically through settlement, drainage issues, or reduced structural performance.

That’s why soil and aggregate testing is crucial. It ensures materials are suitable for use and will deliver the strength, stability, and durability required across a wide range of construction projects.

In this guide, we’ll look at how aggregate and soil testing works in UK construction, the key methods and standards used to assess material suitability, and how results are applied to support decisions from design through to on-site delivery.

What Is Aggregate Testing and Why Is it Important?

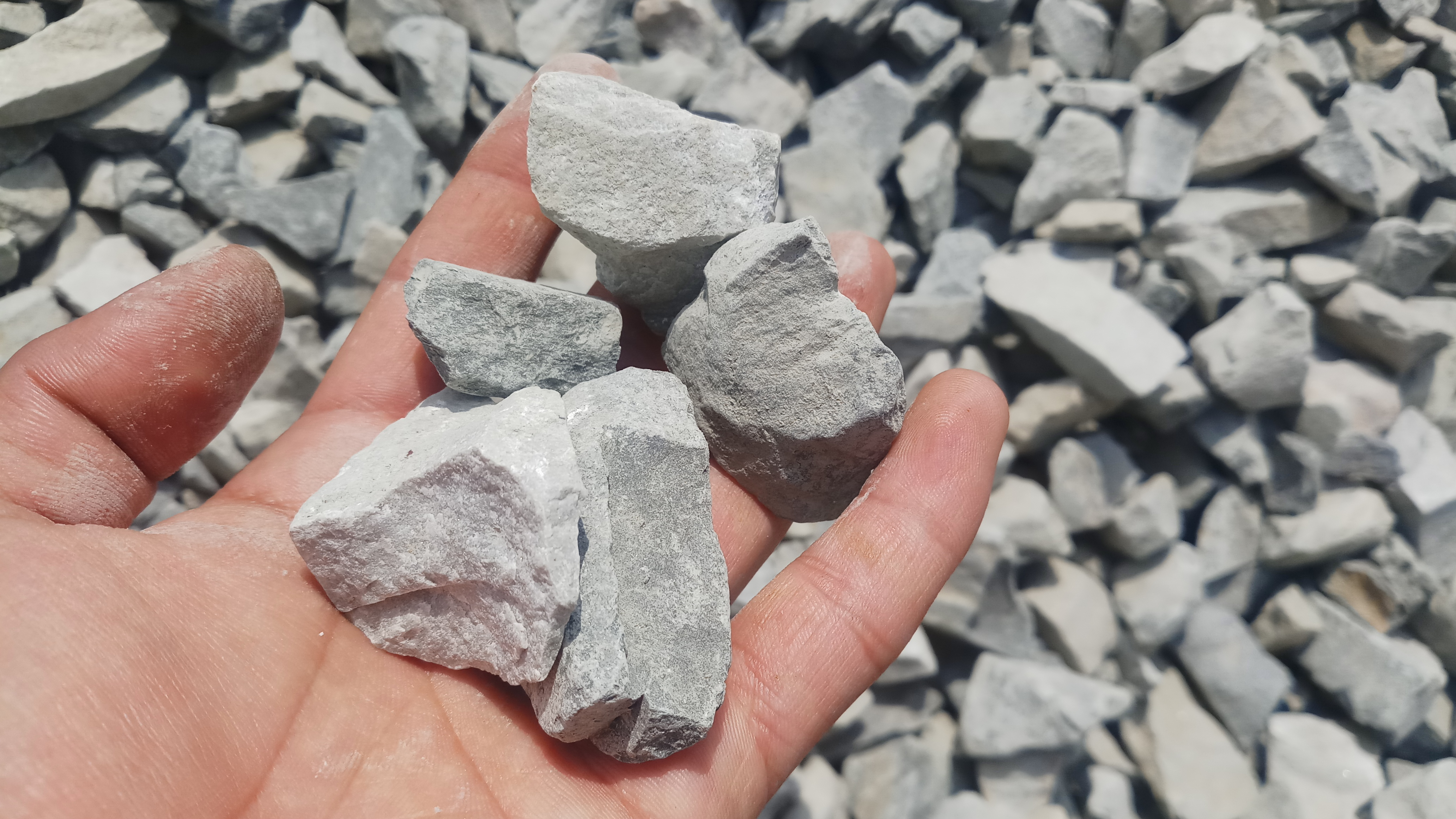

Aggregate testing evaluates the physical and mechanical properties of materials like sand, gravel, and crushed stone. These materials form the backbone of concrete, asphalt, and structural fill, so their performance directly affects the quality of the finished build.

Testing helps answer practical questions early on:

• Will this material compact properly?
• Does it drain effectively?
• Can it withstand loading and environmental conditions?

Alongside aggregates, soil testing provides essential insight into ground conditions. Factors like moisture content, density, and strength influence foundation design and construction methods. Without this data, projects risk delays, redesigns, or compliance issues.

In short, soil and aggregate testing gives you confidence that materials will behave as expected once they’re in place.

Core Methods in Aggregate and Soil Testing

Different tests focus on different properties, but together they build a complete picture of material performance. Below are some of the most widely used methods in UK construction.

Particle Size Distribution (PSD)

Particle size distribution is one of the most important tests for both aggregates and soils. It measures how particle sizes are spread across a sample, from coarse gravel down to fine particles.

For aggregates, PSD is typically carried out in line with BS EN 933-1. The sample is passed through a stack of sieves with decreasing mesh sizes, separating the material into size fractions, which are weighed to determine the overall grading.

Similarly, the particle size analysis of soil follows BS 1377-2. Coarser fractions are assessed using sieving, while finer particles may require sedimentation testing.

Why this matters in practice:

• Well-graded materials will compact more efficiently
• Poor grading can lead to voids, instability, or drainage issues
• Results help confirm compliance with project specifications and standards

Grading of Soil

The grading of soil builds directly on particle size distribution by interpreting what those results mean for engineering performance. By identifying the proportions of gravel, sand, silt, and clay, engineers can predict how a soil will behave under load and in different environmental conditions.

Typical applications include:

• Assessing suitability for subgrades and embankments
• Supporting pavement design
• Determining compaction requirements

In the lab, a representative sample is dried, sieved, and, where needed, analysed using sedimentation to capture finer particles. The outcome is a grading curve, which provides a visual representation of particle distribution. This data feeds directly into decisions around material selection and ground improvement strategies.

Strength and Durability Testing

Beyond grading, aggregates must also demonstrate strength and resistance to wear. Common methods include:

• Los Angeles (Fragmentation) – BS EN 1097-2: Assesses resistance to fragmentation under impact.
• Micro Deval – BS EN 1097-1: Measures abrasion resistance and long-term durability.
• Magnesium Sulphate – BS EN 1367-2: Evaluates resistance to weathering through cycles of soaking and drying.

These tests help determine whether aggregates can withstand the demands of traffic loading, weather exposure, and long-term use.

Density, Moisture, and Compaction

Understanding how materials behave during placement is just as important as their inherent strength. Key tests include:

• Water Content – BS 1097-5 / BS 1377-2: Indicates how much moisture is present relative to dry mass.
• Maximum Dry Density (MDD) & Optimum Moisture Content (OMC): Identifies the conditions needed to achieve effective density.
• Loose Bulk Density & Voids – BS EN 1097-3: Helps assess how aggregates will pack together in use.

These results guide on-site compaction and ensure materials achieve the required performance once installed.

Cleanliness and Composition

Fine materials and contaminants can significantly affect performance, especially in concrete and asphalt. Relevant tests include:

• Sand Equivalent – BS EN 933-8: Indicates the proportion of clean sand versus fines.
• Methylene Blue – BS EN 933-9: Detects harmful clay or other expansive material content in fine aggregates.
• Constituents of Recycled Aggregates – BS EN 933-11: Identifies foreign materials and overall composition.

These checks are particularly important when working with recycled materials, where variability can be higher.

Key Standards for Soil and Aggregate Testing in the UK

Aggregate and soil testing across the UK construction industry follows established British (BS) and European (EN) standards. These ensure consistency, reliability, and comparability of results across projects.

Some of the most commonly applied standards include:

• BS EN 933 series – Aggregate properties, including particle size distribution and shape.
• BS EN 1097 series – Mechanical and physical properties such as strength and density.
• BS 1377 series – Soil testing methods, including particle size analysis and compaction.
• MCHW (Manual of Contract Documents for Highway Works) – Specification requirements for highways projects.

Working to these standards isn’t just about compliance; it ensures that aggregate and soil test results can be trusted at every stage of a project, supporting design decisions, guiding construction on site, and informing ongoing maintenance and performance.

Supporting Better Decisions On Site

Reliable aggregate and soil testing feeds directly into design, planning, and construction across a wide range of projects. It gives engineers and site teams the information they need to make informed, evidence-based decisions before and during works.

In practice, test data is used to:

• Confirm whether materials meet specification for their intended use
• Select suitable aggregates for concrete, asphalt, drainage, or structural fill
• Define compaction requirements, including OMC and target densities
• Assess ground conditions to support foundation design and earthworks planning
• Identify potential issues such as excessive fines, poor grading, or contamination
• Support compliance with project specifications and industry standards

When results are clear and delivered promptly by a trusted testing provider, teams can move forward with confidence – approving materials, refining designs where needed, and keeping work progressing on site.

Lab Precision and Compliance Assurance with ACS

At ACS, we’ve spent decades refining how we deliver aggregate and soil testing for construction projects across the UK. Since gaining UKAS accreditation in 1990, we’ve expanded our capabilities to cover a full range of physical, mechanical, and chemical testing.

• From our purpose-built laboratories in Dorset, we support clients with:
• Comprehensive soil and aggregate testing to BS and EN standards
• Clear, accurate reporting and practical guidance on interpreting results
• Efficient turnaround times, with 80% of testing completed within 10 days

Our team works closely with contractors, developers, and engineers to make sure testing aligns with project requirements from the outset. If you need reliable data to support your next project, explore our aggregates and soils testing services below.

FAQs About Soil and Aggregate Testing

What happens if aggregates fail testing?

If a material doesn’t meet specification, it may need to be replaced, reprocessed, or reassessed for a different application. Early soil and aggregate testing is key to avoiding disruption later in the project.

What is soil grading, and why is it important?

The grading of soil describes the distribution of particle sizes within a sample. It helps determine how the material will behave in terms of compaction, drainage, and stability.

How often should aggregates be tested?

Soil and aggregate testing frequency depends on the project specification, material source, and regulatory requirements. Regular testing is typically carried out to maintain consistency and compliance throughout construction.
