ACS offer a full range of drilling and coring services, from shallow windowless sampling to deep rotary and cable percussion investigations. The extensive equipment held and operated by ACS and available through our trusted subcontractors includes the latest borehole drilling equipment. This enables extensive investigations to be undertaken on a wide range of sites. Services can be tailored to suit the development or Services can be tailored to meet specific development or investigation requirements. For example, they can assist with foundation design, collect samples, or provide insights into the geology of a site.
Window / Windowless Drilling and Sampling
ACS are able to offer windowless drilling and sampling using our in-house drilling rigs. These rigs have been designed to allow quick and easy dynamic drilling in many conditions. With the small size of the rig we are able to fit through a standard doorway. This enables boreholes to be drilled on sites with limited access.
Window / windowless drilling allows boreholes to be sunk up to 10m (dependent on ground conditions). Samples are retrieved within plastic liners which allow for detailed logging and the collection of soil samples. ACS can drill water boreholes in monitoring wells for groundwater and ground gas monitoring/sampling as needed for the project.
In situ standard penetration tests (SPT) are routinely undertaken together with undisturbed samples in cohesive materials (U100). Dynamic probing (DPH & DPSH) can also be undertaken to provide a detailed profile of material density vs depth. These tests can provide a range of geotechnical design parameters.
Cable Percussion Drilling
Cable Percussion Drilling allows deeper boreholes to be sunk up to 40m dependent on the geology of the site. The equipment is larger than our windowless rigs. It requires an open site with access for a 4x4 vehicle. The vehicle is used to tow the rig and carry extra equipment. An area of 5x5m is required to enable set up of the rig and safe working.
In situ testing comprises SPT and U100. As with window / windowless drilling it is also possible to provide monitoring installations as detailed above. This drilling method is needed to gather geotechnical data for designing piled foundations at depths beyond window sampling limits.
Rotary Drilling

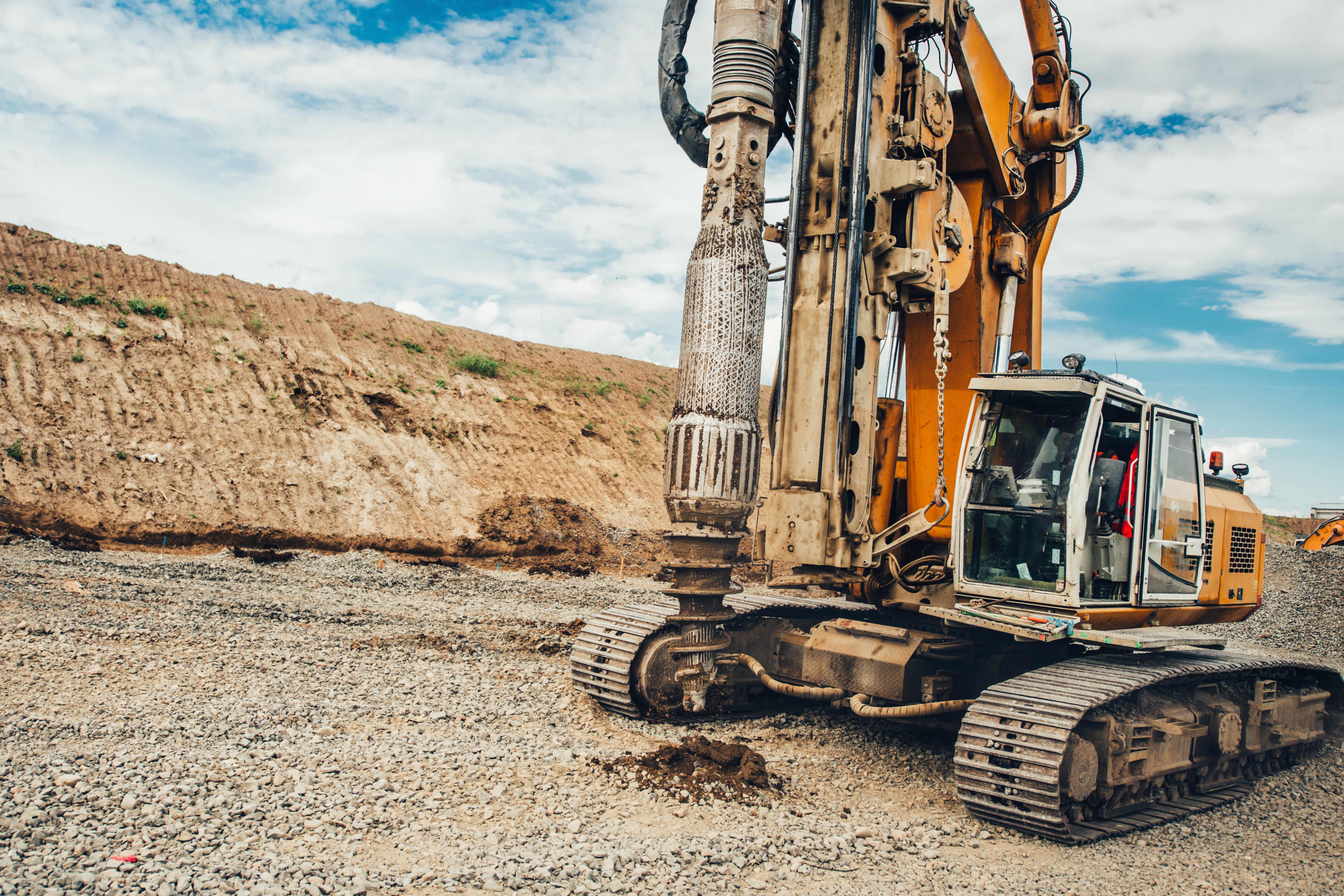

In certain ground conditions cable percussion drilling is not possible. Usually this is due to the presence of rock or where obstructions such as boulders are present. In such situations rotary drilling is used which enables cores to be taken through such layers using a rotating core barrel with diamond cutting shoe.
Multi-Purpose Rotary Rigs also have a dynamic sampling head. This offers both rotary and percussive options which enable a range of ground conditions to be sampled quickly and efficiently. As with the other drilling methods detailed it is possible to undertake in situ SPT and U100 testing.
A slope crawler version of this rig is also available. This rig allows investigation of embankments and cuttings for railway, landslip and other investigations.
Sonic drilling can also be used in place of rotary. Sonic drilling utilises the same rotary method but adds a vibratory force, allowing a faster progression through denser materials.
Core Cutting
Core cutting can be undertaken from 24 to 300mm diameter using both hydraulic and electric rigs. We use different types of rigs for different situations, depending on the depth, diameter, and access restrictions.
Cores are commonly taken through concrete, bituminous materials, bricks, blocks or natural stone. Once cores are obtained, they are taken back to the ACS laboratory for analysis at specific diameters. Horizontal cores can be taken through walls or abutments.
Core cutting can also be undertaken using an attachment to our windowless rigs. This allows boreholes to be easily undertaken in areas of hardstanding, such as car parks, carriageways and internal concrete floor slabs.
Logging
Engineering logs of all exploratory holes can be prepared by our Geo-Environmental Engineers and provided in AGS format if required. We have bespoke site equipment which allows digital logging for direct transfer into logging software.
Further interpretation, analysis and advice regarding laboratory testing can also be provided through our Geo-Environmental Consultancy department
If you're looking for cost-effective drilling services, contact us on 01202 622858. Our Geo-Environmental Consultancy team will be happy to help with your project requirements.
Frequently Asked Questions
What is the purpose of borehole drilling?
As part of a geotechnical investigation, borehole drilling may be carried out for the extraction of water, gases, minerals, soils, and any other materials needed to identify the physical properties and associated risks of a site. This data can then be used to determine relevant design parameters and develop optimised remediation methods.
What is the process of borehole drilling?
Borehole drilling involves drilling a hole deep into the ground to access materials such as water, gas, soil, rock, and minerals. Various ground conditions will require different methods of borehole drilling, such as rotary drilling, cable percussion drilling, and core cutting.
What is cable percussion drilling used for?
Cable percussion drilling is an intrusive geotechnical investigation method used to establish the ground conditions and soil parameters of a development site. This technique allows an accurate definition of the soil and strata boundaries, alongside in-situ soil strength testing and sampling for laboratory testing.
What are the advantages of rotary drilling soil investigation?
If the site investigation requires penetration into rock, dense soil, or any other challenging obstructions, rotary drilling offers high levels of torque and rotation that allow for fast progression through the material. This enables samples to be extracted quickly and efficiently.
